Overview
At Altus® Industrial Aluminium, we offer a full spectrum of aluminium services tailored to meet the demands of modern industry. From precision fabrication and expert surface finishing to high-quality powder coating and anodising, we deliver solutions that enhance both performance and appearance.
Our custom extrusion and die design services are crafted to support your vision, providing the quality and versatility you need for projects of any scale, creating efficiencies in the manufacturing process.
We also offer in-house cutting services, proudly led by New Zealand's leading CNC router profile cutting team.
Aluminium Fabrication Services
Our CNC router, cutting and drilling services deliver precise fabrication, ensuring your aluminium products meet exact specifications.

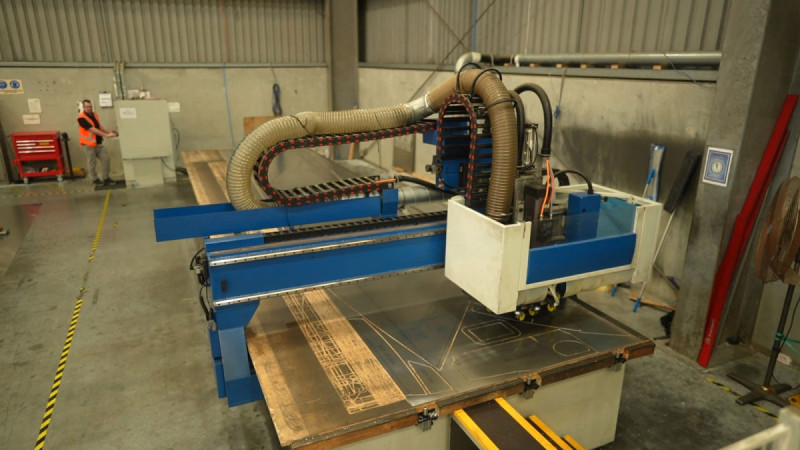

CNC Router
With over 20 years of experience in CNC router machinery and software, Altus® Industrial Aluminium offers precision profile-cutting for aluminium sheets and extrusions with unmatched speed and accuracy.
Our CNC router solution can handle aluminium sheet and plate up to:
- 25mm thick
- 2,400mm wide
- 9,000mm long
We operate two flat-bed CNC routers, complemented by a complete nested cutting solution that ensures optimal material utilisation. This advanced nesting service saves hours of manual work and increases material efficiency, ultimately reducing the costs for your projects.
Benefits of Our CNC Router Services:
- Precision Cutting: Powered by the latest CAD and CAM software
- Enhanced Finish Quality: A smooth cut edge for improved aesthetics
- Superior Weld Strength: No post-cut grinding required, thanks to a non-heat-affected cut zone
- No Water Stains: Ensures a clean, flawless finish
Contact us for cutting services or aluminium light fabrication (ALF) solutions tailored to your requirements. We’ll work with you to find the best approach for your project.
Cutting
At Altus® Industrial Aluminium, we specialise in cutting extrusions, plates, rods, and bars with precision and accuracy. Our cutting services are available at all three of our Distribution Centres – Northern, Central, and Southern – ensuring nationwide coverage and support.
Whether you need a one-off job or have ongoing requirements, our cutting services deliver exceptional quality, consistency, and a high-quality finish. These benefits are designed to improve efficiencies throughout your production process.
We also stock New Zealand’s largest range of 6061 alloy and are equipped to supply your engineering plate, rod & bar needs and cutting requirements nationwide.
Contact us today to discuss your project and discover how we can support your cutting and engineering needs.
Cutting tolerances:
|
Router |
Band Saw |
Plate Saw |
Plate up saw |
Drop/Under bench saw |
|
|
Cutting Tolerance |
+/- 0.5mm |
+/- 2mm |
+/- 3mm |
+/- 1mm |
+/- 5mm |
|
Maximum Thickness |
32mm |
305mm |
100mm |
152mm |
Hollow 100mm Solid 50.8mm |
|
Minimum Thickness |
2mm |
3mm |
|||
|
Maximum Width |
2400mm |
400mm |
2400mm |
350mm |
|
|
Length |
9000mm maximum |
10mm minimum |
2700mm maximum |
2400mm maximum |
|
|
Other Notes |
Auto feed cut tolerance +/- 0.5mm |
Minimum cut size 50mm on one dimension |
Minimum cut size 50mm on one dimension |
Minimum cut size 100mm on one dimension |

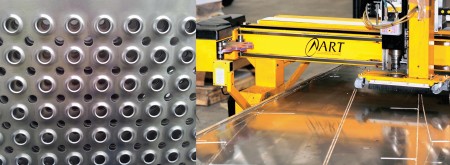

Punching
Our punching service allows customers to order product, and get precision punched sheet metal, extrusion or parts when you need it. The use of punches can be super effective as it removes the burden of such a repetitive process.
Sheet punching
We offer punched and perforated sheets to match your requirements. Please contact us today to discuss a solution that works best for you.

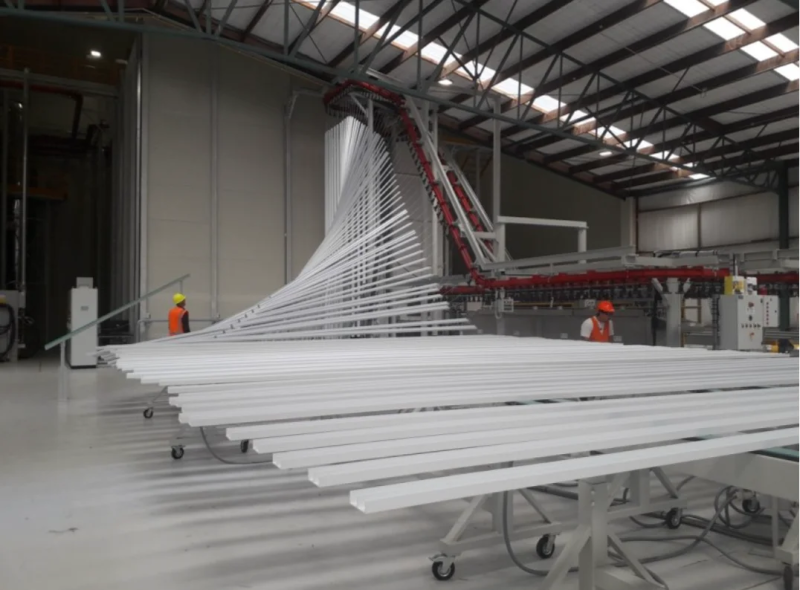

Surface finishing
With a choice of mill finish, powder coating or anodising options, we offer surface finishes that provide durability and a refined look, tailored to your needs. Speak to one of our team to find the right solution for you.
Colourscape™ Powder Coating
We offer a preferred range of 36 colour options, plus we’ll source any colour from the Dulux or Interpon range. Our powder coat facilities operate under Australian and New Zealand Standards AS/NZS3715 for powder coating applications. Our sites are Accredited Applicators for Qbase, EnduroColour, Gold Akzo Nobel and registered Orica Applicators.
Altus® is proud to be recognised as a Dulux Prime Accredited Powder Coater.
Colourscape™ Powder Coat Brochure
Anoguard™ Anodising
We offer Matt Etch anodising in a range of colours; Natural, Bronzes in Light, Medium & Dark and Black on orders to 12, 20 and 25 micron.
Matt Etch removes the majority of manufacturing lines and imperfections, delivering a fine matte surface, sharp clarity and reduced reflectivity.

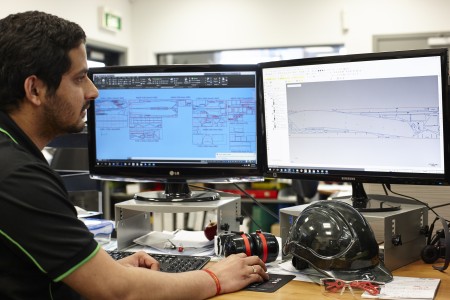

Custom Extrusion and Die Design
We also offer made-to-order services for custom designs and large mill run orders. Our team can provide a total solution – from design through to alloy selection and technical support.

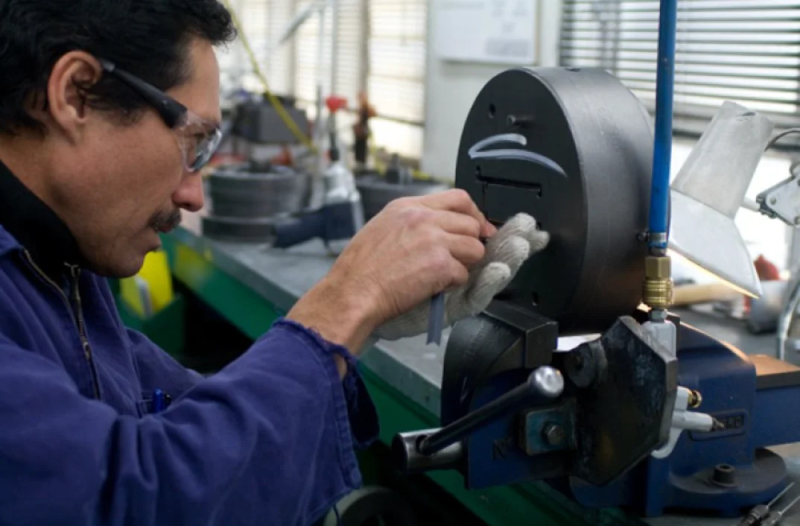

Our experienced Die Design team have a long and successful track record of assisting companies with die design and modification. We create bespoke aluminium profiles, working with you to deliver designs that fit the unique requirements of your project.
