Aluminium extrusion solutions to power your business.
Overview
We stock a wide range of aluminium Geometric shapes and profiles. Our aluminium is manufactured to the highest quality and standards.

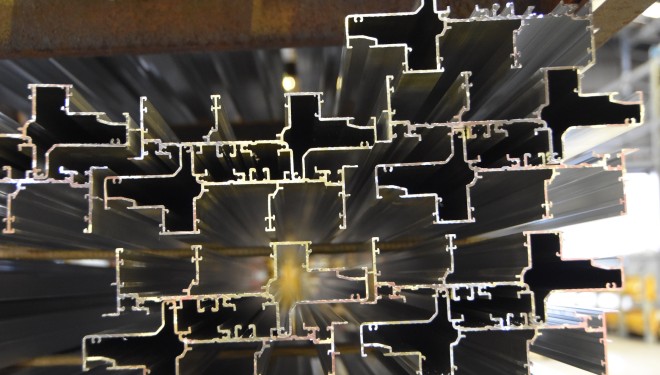

With our extensive selection of extrusions, we cater to a variety of industries, ensuring precise solutions for both standard and custom needs. Whether you're looking for structural strength, aesthetic appeal, or both, our aluminium profiles offer the versatility to meet your project's requirements. From architectural designs to industrial applications, our extrusions deliver exceptional durability and performance. Backed by rigorous quality control and advanced manufacturing processes, our aim is to meet the demands of any modern engineering and design challenges.
Extruded Product Range
Altus® Industrial Aluminium offers a variety of extruded products, including unique geometric shapes that enhance both functionality and aesthetics. Our innovative products are designed for durability and versatility, catering to a wide range of applications and industries.
Geometric shapes
Extruded Products - Geometric Profile Shapes
To expand details please click the respective plus icon.
If you have an enquiry about a product, simply click the 'Enquire' box and fill out the enquiry form.
Please note that diagrams, data and images are used for guidance purposes only. For correct details please request a specific die drawing from Altus® Customer Services as radius locations and other specifications may vary. All peripheries less than 100mm are deemed 100mm for surface finish purpose.

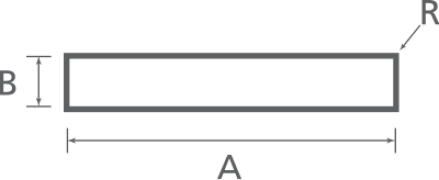

| Die number | A (mm) | C (mm) | R = Radii (mm) | Mass (kg/m) | Perimeter (mm) | Ex Stock | Enquire |
|---|---|---|---|---|---|---|---|
| E603265 | 12.00 | 1.60 | 0.00 | 0.097 | 100.00 | ||
| E00073 | 12.50 | 1.60 | 1.60 | 0.104 | 100.00 | ||
| E13092 | 15.00 | 1.60 | 0.00 | 0.122 | 100.00 | ||
| E609273 | 16.00 | 1.60 | 0.00 | 0.132 | 100.00 | ||
| E601324 | 19.05 | 1.60 | 0.00 | 0.158 | 100.00 | ||
| E04834 | 19.10 | 1.58 | 0.00 | 0.155 | 100.00 | ||
| E00046 | 20.00 | 1.60 | 0.80 | 0.164 | 100.00 | ||
| E609113 | 20.00 | 1.60 | 0.40 | 0.167 | 100.00 | ||
| EK9108 | 20.00 | 3.00 | 0.00 | 0.297 | 100.00 | ||
| E02454 | 25.00 | 1.50 | 0.00 | 0.197 | 100.00 | ||
| E603266 | 25.00 | 1.60 | 0.00 | 0.210 | 100.00 | ||
| EK9217 | 25.00 | 3.00 | 0.00 | 0.381 | 100.00 | ||
| E609125 | 30.00 | 3.00 | 0.00 | 0.463 | 120.00 | ||
| E609127 | 30.00 | 6.00 | 0.00 | 0.878 | 120.00 | ||
| E08237 | 30.00 | 6.00 | 2.00 | 0.868 | 117.00 | ||
| E00700 | 31.70 | 4.76 | 0.00 | 0.756 | 125.00 | ||
| E612393 | 32.00 | 1.60 | 0.00 | 0.270 | 127.00 | ||
| EK9118 | 32.00 | 3.00 | 0.00 | 0.496 | 128.00 | ||
| EK9123 | 40.00 | 1.60 | 0.00 | 0.340 | 160.00 | ||
| EK9124 | 40.00 | 3.00 | 0.00 | 0.624 | 160.00 | ||
| E00701 | 40.00 | 4.50 | 0.00 | 0.917 | 160.00 | ||
| E609132 | 40.00 | 6.00 | 0.00 | 1.203 | 160.00 | ||
| E08238 | 40.00 | 6.00 | 2.00 | 1.183 | 154.00 | ||
| E04968 | 50.00 | 1.50 | 0.00 | 0.396 | 199.00 | ||
| E609468 | 50.00 | 1.60 | 0.00 | 0.427 | 200.00 | ||
| EK9132 | 50.00 | 3.00 | 0.00 | 0.789 | 200.00 | ||
| E03409 | 50.00 | 4.00 | 0.00 | 1.050 | 198.00 | ||
| E05641 | 50.00 | 4.50 | 1.00 | 1.150 | 197.00 | ||
| E01107 | 50.00 | 4.75 | 0.80 | 1.230 | 198.00 | ||
| E609135 | 50.00 | 5.00 | 0.00 | 1.287 | 200.00 | ||
| E609136 | 50.00 | 6.00 | 0.00 | 1.523 | 200.00 | ||
| E04012 | 50.00 | 6.00 | 0.80 | 1.520 | 198.00 | ||
| E03207 | 50.00 | 9.00 | 0.00 | 2.230 | 198.00 | ||
| EK9135 | 60.00 | 3.00 | 0.00 | 0.951 | 240.00 | ||
| EK9136 | 60.00 | 6.00 | 0.00 | 1.854 | 240.00 | ||
| E14483 | 75.00 | 3.00 | 0.00 | 1.194 | 299.00 | ||
| E07266 | 75.00 | 4.50 | 0.80 | 1.760 | 298.00 | ||
| E04166 | 75.00 | 6.00 | 0.00 | 2.341 | 299.00 | ||
| E04167 | 75.00 | 9.00 | 0.00 | 3.430 | 299.00 | ||
| EM0568 | 76.20 | 6.40 | 0.00 | 2.504 | 305.00 | ||
| TBA | 100.00 | 3.00 | 0.00 | 0.000 | 0.00 | ||
| E609147 | 100.00 | 6.00 | 0.00 | 3.154 | 400.00 | ||
| E01558 | 100.00 | 6.00 | 0.00 | 3.154 | 400.00 | ||
| E11893 | 100.00 | 10.00 | 0.00 | 5.149 | 400.00 |
Please note that diagrams, data and images are used for guidance purposes only. For correct details please request a specific die drawing from Altus® Customer Services as radius locations and other specifications may vary. All peripheries less than 100mm are deemed 100mm for surface finish purpose.
| Die number | A (mm) | B (mm) | C (mm) | R = Radii (mm) | Mass (kg/m) | Perimeter (mm) | Ex Stock | Enquire |
|---|---|---|---|---|---|---|---|---|
| EK9105 | 20.00 | 12.00 | 1.60 | 0.00 | 0.130 | 100.00 | ||
| E01377 | 22.00 | 12.00 | 3.00 | 1.00 | 0.248 | 100.00 | ||
| E01745 | 25.00 | 12.00 | 1.60 | 0.00 | 0.151 | 100.00 | ||
| E14484 | 25.00 | 12.00 | 3.00 | 0.00 | 0.276 | 100.00 | ||
| EK9111 | 25.00 | 20.00 | 1.60 | 0.00 | 0.186 | 100.00 | ||
| E609114 | 25.00 | 20.00 | 1.60 | 0.40 | 0.187 | 100.00 | ||
| E404559 | 25.50 | 12.80 | 1.60 | 0.00 | 0.159 | 100.00 | ||
| E609648 | 30.00 | 12.00 | 1.60 | 0.00 | 0.174 | 100.00 | ||
| E00793 | 30.00 | 20.00 | 3.00 | 0.00 | 0.381 | 100.00 | ||
| E04071 | 32.00 | 20.00 | 1.50 | 0.00 | 0.203 | 102.00 | ||
| E00682 | 32.00 | 25.00 | 3.00 | 0.00 | 0.434 | 113.00 | ||
| E601325 | 38.10 | 19.10 | 1.60 | 0.00 | 0.241 | 114.00 | ||
| E13093 | 40.00 | 12.00 | 1.60 | 0.00 | 0.220 | 103.00 | ||
| E00685 | 40.00 | 20.00 | 1.60 | 0.00 | 0.252 | 119.00 | ||
| E609497 | 40.00 | 20.00 | 1.60 | 0.40 | 0.253 | 120.00 | ||
| E13094 | 40.00 | 20.00 | 3.00 | 0.00 | 0.464 | 119.00 | ||
| E11481 | 40.00 | 25.00 | 1.50 | 0.00 | 0.257 | 129.00 | ||
| E609331 | 40.00 | 25.00 | 1.60 | 0.00 | 0.275 | 130.00 | ||
| EK9122 | 40.00 | 25.00 | 3.00 | 0.00 | 0.499 | 129.00 | ||
| E609652 | 50.00 | 12.00 | 1.60 | 0.00 | 0.262 | 124.00 | ||
| E13095 | 50.00 | 20.00 | 1.60 | 0.00 | 0.298 | 139.00 | ||
| EK9128 | 50.00 | 20.00 | 3.00 | 0.00 | 0.543 | 140.00 | ||
| E11480 | 50.00 | 25.00 | 1.50 | 0.00 | 0.297 | 149.00 | ||
| E609123 | 50.00 | 25.00 | 1.60 | 0.00 | 0.317 | 150.00 | ||
| E609124 | 50.00 | 25.00 | 3.00 | 0.00 | 0.585 | 150.00 | ||
| E404357 | 50.00 | 38.00 | 5.00 | 0.00 | 1.125 | 176.00 | ||
| E01373 | 50.00 | 38.00 | 5.00 | 1.00 | 1.090 | 173.00 | ||
| E609134 | 50.00 | 40.00 | 5.00 | 0.00 | 1.148 | 180.00 | ||
| E613344 | 60.00 | 20.00 | 3.00 | 0.00 | 0.626 | 159.00 | ||
| E11691 | 60.00 | 30.00 | 6.00 | 0.00 | 1.336 | 173.00 | ||
| E00149 | 65.00 | 25.00 | 3.00 | 6.00 | 0.726 | 176.00 | ||
| E609809 | 70.00 | 20.00 | 1.60 | 0.00 | 0.383 | 180.00 | ||
| E404517 | 70.00 | 25.00 | 1.60 | 0.00 | 0.405 | 190.00 | ||
| E613885 | 70.00 | 40.00 | 2.00 | 0.00 | 0.585 | 219.00 | ||
| E602969 | 75.00 | 25.00 | 3.00 | 0.00 | 0.789 | 200.00 | ||
| E05289 | 75.00 | 25.00 | 3.00 | 1.00 | 0.783 | 197.00 | ||
| EM6788 | 75.00 | 50.00 | 3.00 | 0.00 | 0.988 | 250.00 | ||
| E02380 | 75.00 | 50.00 | 4.50 | 0.00 | 1.470 | 248.00 | ||
| E404001 | 75.00 | 50.00 | 4.50 | 0.40 | 1.469 | 250.00 | ||
| E01077 | 75.00 | 50.00 | 6.00 | 0.00 | 1.930 | 248.00 | ||
| E00069 | 75.00 | 50.00 | 6.00 | 7.00 | 1.970 | 245.00 | ||
| EM2386 | 76.20 | 50.80 | 6.40 | 0.00 | 2.069 | 254.00 | ||
| E01474 | 80.00 | 40.00 | 3.00 | 0.00 | 0.956 | 239.00 | ||
| E609645 | 80.00 | 40.00 | 3.00 | 0.40 | 0.956 | 239.00 | ||
| E609649 | 81.00 | 12.00 | 1.60 | 0.00 | 0.396 | 186.00 | ||
| E612165 | 85.00 | 20.00 | 1.60 | 0.00 | 0.448 | 209.00 | ||
| E12794 | 100.00 | 25.00 | 1.90 | 0.00 | 0.631 | 249.00 | ||
| E01641 | 100.00 | 25.00 | 3.00 | 0.80 | 0.985 | 248.00 | ||
| E13633 | 100.00 | 25.00 | 6.00 | 2.00 | 1.924 | 246.00 | ||
| E611645 | 100.00 | 50.00 | 2.00 | 0.00 | 0.802 | 299.00 | ||
| E11482 | 100.00 | 50.00 | 3.00 | 0.00 | 1.191 | 299.00 | ||
| E612333 | 100.00 | 50.00 | 4.00 | 0.00 | 1.582 | 299.00 | ||
| E08933 | 100.00 | 50.00 | 6.00 | 0.00 | 2.330 | 299.00 | ||
| E404384 | 102.00 | 25.50 | 3.20 | 0.00 | 1.078 | 255.00 | ||
| E612468 | 120.00 | 75.00 | 6.00 | 0.00 | 3.073 | 390.00 | ||
| E609689 | 125.00 | 40.00 | 6.00 | 0.00 | 2.585 | 330.00 | ||
| EK9139 | 125.00 | 50.00 | 3.00 | 0.40 | 1.393 | 350.00 | ||
| E613681 | 150.00 | 40.00 | 3.00 | 0.00 | 1.520 | 379.00 | ||
| E12218 | 150.00 | 50.00 | 6.00 | 1.00 | 3.140 | 397.00 | ||
| E04733 | 150.00 | 75.00 | 6.00 | 2.00 | 3.544 | 446.00 | ||
| E609576 | 150.00 | 75.00 | 8.00 | 0.00 | 4.687 | 449.00 | ||
| E12274 | 150.00 | 75.00 | 8.00 | 1.00 | 4.685 | 447.00 | ||
| E04953 | 150.00 | 75.00 | 10.00 | 10.00 | 5.850 | 441.00 |
Please note that diagrams, data and images are used for guidance purposes only. For correct details please request a specific die drawing from Altus® Customer Services as radius locations and other specifications may vary. All peripheries less than 100mm are deemed 100mm for surface finish purpose.
Notes: E14223 & E13591 have an odd leg. E14273 has a lip

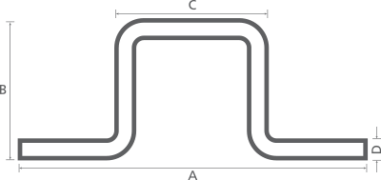

| Die number | A (mm) | B (mm) | C (mm) | D (mm) | R = Radii (mm) | Mass (kg/m) | Perimeter (mm) | Ex Stock | Enquire |
|---|---|---|---|---|---|---|---|---|---|
| E00380 | 9.50 | 9.50 | 2.40 | 1.50 | 0.00 | 0.116 | 100.00 | ||
| E404086 | 9.60 | 9.60 | 1.60 | 1.60 | 0.00 | 0.111 | 100.00 | ||
| E03815 | 14.70 | 18.00 | 1.60 | 1.60 | 0.00 | 0.205 | 100.00 | ||
| E06500 | 16.00 | 16.00 | 1.60 | 1.60 | 0.00 | 0.191 | 100.00 | ||
| E00794 | 17.50 | 31.80 | 2.40 | 2.40 | 0.00 | 0.488 | 156.00 | ||
| EL1812 | 20.00 | 20.00 | 1.60 | 1.60 | 0.50 | 0.245 | 115.00 | ||
| EK9154 | 20.00 | 20.00 | 2.50 | 2.50 | 0.50 | 0.371 | 113.00 | ||
| E02493 | 22.00 | 12.00 | 1.50 | 1.50 | 0.00 | 0.173 | 100.00 | ||
| E00083 | 22.00 | 22.00 | 3.00 | 3.00 | 0.50 | 0.483 | 124.00 | ||
| E02430 | 25.00 | 25.00 | 1.60 | 1.60 | 0.00 | 0.311 | 146.00 | ||
| E03015 | 25.00 | 25.00 | 3.00 | 3.00 | 0.80 | 0.561 | 142.00 | ||
| E404004 | 25.00 | 25.00 | 3.00 | 3.00 | 0.40 | 0.564 | 142.00 | ||
| E609180 | 25.00 | 30.00 | 3.00 | 3.00 | 0.00 | 0.642 | 164.00 | ||
| E609760 | 25.00 | 50.00 | 3.00 | 3.00 | 0.00 | 0.964 | 244.00 | ||
| E02319 | 25.40 | 50.80 | 2.30 | 2.30 | 1.60 | 0.761 | 249.00 | ||
| E14273 | 26.00 | 12.00 | 9.50 | 3.00 | 0.00 | 0.491 | 403.00 | ||
| E609182 | 30.00 | 25.00 | 3.00 | 3.00 | 0.00 | 0.602 | 154.00 | ||
| E00152 | 30.00 | 25.00 | 3.00 | 3.00 | 6.00 | 0.640 | 147.00 | ||
| EK9160 | 32.00 | 25.00 | 3.00 | 3.00 | 0.00 | 0.612 | 158.00 | ||
| E01140 | 38.10 | 38.10 | 3.20 | 3.20 | 0.00 | 0.933 | 220.00 | ||
| E609354 | 40.00 | 12.00 | 3.00 | 3.00 | 0.00 | 0.472 | 122.00 | ||
| EK9161 | 40.00 | 20.00 | 3.00 | 3.00 | 0.50 | 0.599 | 153.00 | ||
| E609183 | 40.00 | 20.00 | 3.00 | 3.00 | 0.40 | 0.599 | 154.00 | ||
| EK9162 | 40.00 | 25.00 | 3.00 | 3.00 | 0.00 | 0.680 | 174.00 | ||
| E404308 | 45.00 | 25.00 | 3.00 | 3.00 | 0.00 | 0.724 | 184.00 | ||
| EK9215 | 50.00 | 25.00 | 3.00 | 3.00 | 0.00 | 0.758 | 194.00 | ||
| E609288 | 50.00 | 25.00 | 3.00 | 3.00 | 3.00 | 0.761 | 0.93 | ||
| E13591 | 50.00 | 45.00 | 6.00 | 27.00 | 0.00 | 1.768 | 223.00 | ||
| E609187 | 50.00 | 50.00 | 3.00 | 3.00 | 0.00 | 1.166 | 294.00 | ||
| E603982 | 50.80 | 25.40 | 2.50 | 2.50 | 0.00 | 0.654 | 198.00 | ||
| E609813 | 53.00 | 25.00 | 1.50 | 1.50 | 0.00 | 0.406 | 202.00 | ||
| E14485 | 60.00 | 25.00 | 3.00 | 3.00 | 6.00 | 1.203 | 208.00 | ||
| EK9164 | 60.00 | 32.00 | 3.00 | 3.00 | 0.00 | 0.953 | 240.00 | ||
| E00186 | 63.50 | 25.40 | 3.18 | 3.20 | 3.20 | 0.885 | 211.00 | ||
| E13134 | 75.00 | 18.00 | 3.00 | 3.00 | 0.80 | 0.852 | 213.00 | ||
| E611744 | 75.00 | 40.00 | 4.50 | 4.00 | 4.00 | 1.703 | 297.00 | ||
| E00699 | 75.00 | 40.00 | 4.50 | 4.50 | 7.50 | 1.840 | 293.00 | ||
| E609190 | 75.00 | 40.00 | 6.00 | 6.00 | 0.40 | 2.327 | 298.00 | ||
| E00076 | 75.00 | 40.00 | 6.00 | 8.00 | 7.50 | 2.749 | 290.00 | ||
| E609580 | 76.00 | 38.00 | 3.00 | 3.00 | 3.00 | 1.193 | 295.00 | ||
| EM1226 | 76.20 | 38.10 | 6.40 | 7.90 | 0.00 | 2.664 | 292.00 | ||
| E11968 | 79.20 | 25.00 | 1.60 | 1.60 | 0.00 | 0.542 | 253.00 | ||
| E13096 | 80.00 | 40.00 | 3.00 | 3.00 | 0.00 | 1.253 | 313.00 | ||
| E00720 | 90.00 | 30.00 | 3.00 | 3.00 | 3.00 | 1.170 | 291.00 | ||
| E01392 | 100.00 | 25.00 | 3.00 | 3.00 | 0.00 | 1.160 | 292.00 | ||
| EB1208 | 100.00 | 50.00 | 3.00 | 3.00 | 0.80 | 1.570 | 391.00 | ||
| E609193 | 100.00 | 50.00 | 6.00 | 6.00 | 0.00 | 3.057 | 388.00 | ||
| E04013 | 100.00 | 50.00 | 6.00 | 6.00 | 0.80 | 3.050 | 385.00 | ||
| E00078 | 100.00 | 50.00 | 6.00 | 8.00 | 9.00 | 3.610 | 378.00 | ||
| E611839 | 115.00 | 60.00 | 6.00 | 6.00 | 6.00 | 3.638 | 448.00 | ||
| E609208 | 120.00 | 60.00 | 6.00 | 6.00 | 6.00 | 3.749 | 463.00 | ||
| E00079 | 125.00 | 65.00 | 6.50 | 9.50 | 10.50 | 5.320 | 486.00 | ||
| E609783 | 150.00 | 75.00 | 3.50 | 3.50 | 0.00 | 2.768 | 592.00 | ||
| E613218 | 150.00 | 75.00 | 5.00 | 5.00 | 0.00 | 3.929 | 589.00 | ||
| E609196 | 150.00 | 75.00 | 6.00 | 6.00 | 0.00 | 4.683 | 588.00 | ||
| E00080 | 150.00 | 75.00 | 6.00 | 9.00 | 12.00 | 5.940 | 576.00 | ||
| E613422 | 150.00 | 75.00 | 6.00 | 8.00 | 7.00 | 5.319 | 570.00 | ||
| E03560 | 150.00 | 76.20 | 4.50 | 4.50 | 0.80 | 3.560 | 594.00 |
Please note that diagrams, data and images are used for guidance purposes only. For correct details please request a specific die drawing from Altus® Customer Services as radius locations and other specifications may vary. All peripheries less than 100mm are deemed 100mm for surface finish purpose.
| Die number | A (mm) | C (mm) | R = Radii (mm) | Mass (kg/m) | Perimeter (mm) | Ex Stock | Enquire |
|---|---|---|---|---|---|---|---|
| E401911 | 12.70 | 1.50 | 0.40 | 0.182 | 100.00 | ||
| EH2913 | 12.70 | 1.57 | 0.40 | 0.189 | 100.00 | ||
| E404255 | 13.00 | 1.40 | 1.50 | 0.171 | 100.00 | ||
| E404007 | 19.00 | 1.50 | 3.00 | 0.269 | 100.00 | ||
| E00426 | 19.00 | 1.50 | 3.00 | 0.283 | 100.00 | ||
| E13756 | 19.00 | 2.50 | 3.00 | 0.428 | 100.00 | ||
| E609233 | 20.00 | 1.60 | 0.40 | 0.318 | 100.00 | ||
| E08541 | 20.00 | 3.00 | 0.00 | 0.551 | 100.00 | ||
| E05261 | 25.00 | 1.40 | 1.60 | 0.351 | 100.00 | ||
| E05632 | 25.00 | 1.60 | 2.00 | 0.396 | 100.00 | ||
| E00192 | 25.00 | 1.80 | 1.60 | 0.443 | 100.00 | ||
| E404430 | 25.00 | 1.80 | 2.00 | 0.443 | 100.00 | ||
| E07564 | 25.00 | 3.00 | 0.50 | 0.712 | 100.00 | ||
| E609292 | 25.00 | 3.00 | 0.40 | 0.713 | 100.00 | ||
| E609719 | 25.00 | 4.50 | 2.00 | 0.991 | 100.00 | ||
| E05071 | 25.00 | 5.00 | 1.50 | 1.070 | 100.00 | ||
| EM7841 | 30.00 | 2.00 | 2.50 | 0.596 | 116.00 | ||
| E11695 | 30.00 | 2.50 | 0.00 | 0.742 | 119.00 | ||
| E404057 | 31.80 | 3.30 | 0.40 | 1.020 | 127.00 | ||
| E09273 | 33.00 | 1.60 | 0.40 | 0.534 | 129.00 | ||
| 35.00 | 2.00 | 0.40 | 0.000 | 0.00 | |||
| E00193 | 38.00 | 2.00 | 1.00 | 0.780 | 150.00 | ||
| E13300 | 40.00 | 2.00 | 3.00 | 0.802 | 155.00 | ||
| E01771 | 40.00 | 2.00 | 3.60 | 0.800 | 154.00 | ||
| E609238 | 40.00 | 2.00 | 0.00 | 0.824 | 160.00 | ||
| EL7939 | 40.00 | 3.00 | 0.50 | 1.200 | 159.00 | ||
| E614093 | 40.00 | 3.00 | 3.00 | 1.185 | 155.00 | ||
| E609626 | 40.00 | 4.00 | 0.00 | 1.555 | 159.00 | ||
| E05260 | 40.00 | 5.00 | 2.50 | 1.877 | 156.00 | ||
| E00194 | 50.00 | 1.60 | 0.00 | 0.837 | 199.00 | ||
| E13264 | 50.00 | 2.00 | 3.00 | 1.022 | 377.00 | ||
| E404431 | 50.00 | 2.00 | 3.00 | 1.022 | 199.00 | ||
| E609543 | 50.00 | 2.50 | 0.40 | 1.287 | 200.00 | ||
| E609450 | 50.00 | 3.00 | 3.00 | 1.510 | 195.00 | ||
| E01425 | 50.00 | 3.00 | 3.00 | 1.510 | 195.00 | ||
| E06125 | 50.00 | 3.00 | 3.00 | 1.510 | 195.00 | ||
| E609431 | 50.00 | 3.00 | 4.00 | 1.494 | 193.00 | ||
| E609239 | 50.00 | 3.00 | 0.40 | 1.528 | 200.00 | ||
| E13586 | 50.00 | 4.00 | 2.50 | 1.973 | 196.00 | ||
| E08183 | 50.00 | 5.00 | 2.00 | 2.420 | 197.00 | ||
| E609802 | 50.00 | 5.00 | 4.00 | 2.411 | 193.00 | ||
| E609487 | 50.00 | 6.00 | 0.00 | 2.864 | 200.00 | ||
| E09356 | 50.00 | 3.50/6.0 | 7.00 | 2.338 | 188.00 | ||
| E00210 | 57.00 | 3.00 | 6.00 | 1.680 | 218.00 | ||
| E609507 | 57.00 | 3.00 | 6.00 | 1.680 | 218.00 | ||
| E404662 | 60.00 | 1.40 | 1.00 | 0.887 | 238.00 | ||
| E06863 | 60.00 | 1.80 | 1.00 | 1.130 | 238.00 | ||
| E610855 | 62.00 | 5.00 | 3.00 | 3.068 | 243.00 | ||
| E04771 | 62.00 | 5.00 | 5.00 | 2.910 | 231.00 | ||
| E614295 | 65.00 | 2.00 | 3.00 | 1.347 | 255.00 | ||
| E04490 | 75.00 | 3.00 | 1.00 | 2.414 | 298.00 | ||
| E609240 | 75.00 | 3.00 | 0.40 | 2.333 | 300.00 | ||
| E04915 | 75.00 | 4.50 | 0.80 | 3.420 | 298.00 | ||
| E05923 | 100.00 | 3.00 | 0.80 | 3.143 | 399.00 | ||
| E609241 | 100.00 | 3.00 | 0.40 | 3.154 | 400.00 | ||
| E13761 | 100.00 | 4.50 | 0.50 | 4.640 | 395.00 | ||
| E13098 | 100.00 | 6.00 | 12.00 | 5.866 | 379.00 | ||
| E613503 | 100.00 | 6.00 | 0.00 | 6.197 | 399.00 | ||
| E14674 | 150.00 | 3.00 | 1.50 | 4.775 | 597.00 |
Please note that diagrams, data and images are used for guidance purposes only. For correct details please request a specific die drawing from Altus® Customer Services as radius locations and other specifications may vary. All peripheries less than 100mm are deemed 100mm for surface finish purpose.
| Die number | A (mm) | B (mm) | C (mm) | R = Radii (mm) | Mass (kg/m) | Perimeter (mm) | Ex Stock | Enquire |
|---|---|---|---|---|---|---|---|---|
| E609348 | 20.00 | 10.00 | 2.00 | 0.00 | 0.282 | 100.00 | ||
| E03308 | 20.00 | 15.00 | 1.50 | 1.00 | 0.259 | 100.00 | ||
| E603491 | 25.40 | 12.70 | 1.60 | 0.00 | 0.303 | 100.00 | ||
| 609619 | 30.00 | 20.00 | 2.00 | 0.00 | 0.496 | 100.00 | ||
| E609622* | 38.00 | 25.00 | 2.00 | 3.00 | 0.619 | 121.00 | ||
| EE13299 | 38.00 | 25.00 | 2.00 | 3.00 | 0.619 | 121.00 | ||
| EH2938 | 38.10 | 17.50 | 3.18 | 0.40 | 0.845 | 111.00 | ||
| E00352 | 38.10 | 19.10 | 3.18 | 0.80 | 0.878 | 113.00 | ||
| E609243 | 40.00 | 20.00 | 1.60 | 0.00 | 0.493 | 120.00 | ||
| E12713 | 40.00 | 20.00 | 2.00 | 1.50 | 0.600 | 117.00 | ||
| E13099 | 40.00 | 20.00 | 3.00 | 0.40 | 0.879 | 215.00 | ||
| E609695 | 40.00 | 20.00 | 3.00 | 0.00 | 0.878 | 120.00 | ||
| EM9785 | 40.00 | 25.00 | 2.50 | 0.00 | 0.810 | 130.00 | ||
| E05349 | 42.60 | 15.60 | 1.40 | 0.00 | 0.418 | 116.00 | ||
| E12911 | 45.00 | 30.00 | 1.80 | 1.80 | 0.687 | 147.00 | ||
| E05350 | 45.00 | 30.00 | 3.00 | 3.00 | 1.100 | 145.00 | ||
| E601944 | 50.00 | 20.00 | 3.00 | 0.00 | 1.041 | 140.00 | ||
| E609804* | 50.00 | 25.00 | 1.60 | 1.00 | 0.618 | 148.00 | ||
| E00965 | 50.00 | 25.00 | 2.00 | 0.00 | 0.770 | 150.00 | ||
| E13346 | 50.00 | 25.00 | 2.00 | 3.00 | 0.748 | 145.00 | ||
| E07793 | 50.00 | 25.00 | 3.00 | 3.00 | 1.090 | 144.00 | ||
| E609444 | 50.00 | 25.00 | 3.00 | 0.00 | 1.122 | 150.00 | ||
| E14261 | 50.00 | 25.00 | 5.00 | 3.00 | 1.741 | 145.00 | ||
| E09355 | 50.00 | 25.00 | 3.50 | 7.00 | 1.528 | 138.00 | ||
| E15753 | 50.00 | 30.00 | 2.00 | 0.80 | 0.822 | 159.00 | ||
| E06026 | 50.00 | 38.00 | 2.00 | 3.00 | 0.889 | 171.00 | ||
| E01375 | 50.00 | 40.00 | 3.00 | 0.00 | 1.361 | 180.00 | ||
| E609244 | 50.00 | 40.00 | 3.00 | 0.00 | 1.361 | 180.00 | ||
| E404663* | 60.00 | 30.00 | 1.40 | 1.00 | 0.660 | 178.00 | ||
| 60.00 | 35.00 | 4.00 | 4.00 | 0.000 | 0.00 | |||
| EL8015 | 60.00 | 40.00 | 3.00 | 0.50 | 1.520 | 200.00 | ||
| E609514 | 60.00 | 40.00 | 3.00 | 0.00 | 1.528 | 200.00 | ||
| E15803 | 65.00 | 16.00 | 1.50 | 2.50 | 0.622 | 306.00 | ||
| E04342 | 65.00 | 30.00 | 2.50 | 0.80 | 1.220 | 188.00 | ||
| E609503 | 65.00 | 30.00 | 2.50 | 0.00 | 1.220 | 190.00 | ||
| E01376 | 65.00 | 50.00 | 3.00 | 0.80 | 1.790 | 231.00 | ||
| E404256 | 65.00 | 50.00 | 3.00 | 0.00 | 1.772 | 230.00 | ||
| E06394 | 75.00 | 20.00 | 1.60 | 0.00 | 0.791 | 189.00 | ||
| E05621 | 75.00 | 25.00 | 2.20 | 0.00 | 1.130 | 199.00 | ||
| E601943 | 75.00 | 25.00 | 3.00 | 0.00 | 1.528 | 199.00 | ||
| E14486 | 75.00 | 40.00 | 2.00 | 0.50 | 1.203 | 229.00 | ||
| E13388 | 75.00 | 40.00 | 3.00 | 5.00 | 1.717 | 221.00 | ||
| E05216 | 75.00 | 40.00 | 5.00 | 1.50 | 2.840 | 227.00 | ||
| E08790 | 75.00 | 40.00 | 5.00 | 6.00 | 2.750 | 220.00 | ||
| E602970 | 75.00 | 40.00 | 6.00 | 0.00 | 3.350 | 230.00 | ||
| E603012 | 75.00 | 45.00 | 2.00 | 0.00 | 1.257 | 240.00 | ||
| E12563 | 75.00 | 50.00 | 3.00 | 3.00 | 1.908 | 245.00 | ||
| E612302 | 75.00 | 50.00 | 3.00 | 0.00 | 1.935 | 475.00 | ||
| E404634* | 75.00 | 50.00 | 4.00 | 2.00 | 2.527 | 247.00 | ||
| E14260 | 75.00 | 50.00 | 6.00 | 0.80 | 3.673 | 249.00 | ||
| E612876 | 76.20 | 38.10 | 3.18 | 0.00 | 1.860 | 228.00 | ||
| E10486 | 80.00 | 40.00 | 2.50 | 0.80 | 1.553 | 239.00 | ||
| E609290 | 80.00 | 40.00 | 3.00 | 0.00 | 1.847 | 240.00 | ||
| E609691 | 80.00 | 50.00 | 3.00 | 3.00 | 1.995 | 255.00 | ||
| E614258 | 80.00 | 70.00 | 6.00 | 6.00 | 4.413 | 289.00 | ||
| E01489 | 100.00 | 25.00 | 2.20 | 1.60 | 1.430 | 247.00 | ||
| E404291 | 100.00 | 25.00 | 2.20 | 0.00 | 1.438 | 250.00 | ||
| EL8021 | 100.00 | 25.00 | 2.50 | 2.50 | 1.620 | 250.00 | ||
| E609371 | 100.00 | 25.00 | 2.50 | 0.00 | 1.620 | 250.00 | ||
| E609246 | 100.00 | 25.00 | 3.00 | 0.00 | 1.935 | 250.00 | ||
| E609378 | 100.00 | 40.00 | 2.00 | 0.00 | 1.474 | 280.00 | ||
| E602818 | 100.00 | 45.00 | 3.00 | 0.00 | 2.252 | 290.00 | ||
| EL8024 | 100.00 | 50.00 | 1.60 | 0.00 | 1.270 | 299.00 | ||
| E609349 | 100.00 | 50.00 | 2.00 | 0.00 | 1.583 | 300.00 | ||
| E00665 | 100.00 | 50.00 | 3.00 | 0.00 | 2.350 | 299.00 | ||
| E404009 | 100.00 | 50.00 | 3.00 | 0.40 | 2.341 | 300.00 | ||
| E609248* | 100.00 | 50.00 | 3.00 | 4.00 | 2.307 | 293.00 | ||
| E12278 | 100.00 | 50.00 | 4.00 | 3.00 | 3.047 | 295.00 | ||
| E12078 | 100.00 | 50.00 | 4.00 | 5.00 | 3.012 | 291.00 | ||
| E609700 | 100.00 | 50.00 | 4.00 | 0.00 | 3.079 | 300.00 | ||
| E614259 | 100.00 | 50.00 | 5.00 | 6.00 | 3.713 | 289.00 | ||
| E05069 | 100.00 | 50.00 | 6.00 | 1.50 | 4.460 | 297.00 | ||
| E614294 | 100.00 | 50.00 | 6.00 | 5.00 | 4.430 | 291.00 | ||
| E609455 | 100.00 | 50.00 | 6.00 | 0.40 | 4.471 | 300.00 | ||
| E12912 | 120.00 | 60.00 | 3.00 | 0.00 | 2.819 | 358.00 | ||
| E13262 | 125.00 | 50.00 | 5.00 | 1.50 | 4.450 | 347.00 | ||
| E613119 | 125.00 | 65.00 | 5.00 | 5.00 | 4.820 | 371.00 | ||
| E614260 | 125.00 | 90.00 | 6.00 | 6.00 | 6.527 | 420.00 | ||
| EMJ863 | 150.00 | 50.00 | 3.00 | 0.00 | 3.154 | 400.00 | ||
| E609411* | 150.00 | 50.00 | 3.00 | 4.00 | 3.120 | 393.00 | ||
| E609250 | 150.00 | 50.00 | 3.00 | 0.00 | 3.154 | 400.00 | ||
| E611663 | 150.00 | 50.00 | 5.00 | 10.00 | 4.975 | 382.00 | ||
| E14403 | 152.00 | 76.00 | 6.40 | 2.00 | 7.458 | 453.00 | ||
| E14758 | 150.00 | 100.00 | 3.00 | 0.50 | 9.967 | 499.00 | ||
| E14407 | 200.00 | 50.00 | 3.00 | 0.80 | 3.967 | 498.00 | ||
| E14408 | 250.00 | 50.00 | 3.20 | 0.80 | 5.091 | 598.00 |
Please note that diagrams, data and images are used for guidance purposes only. For correct details please request a specific die drawing from Altus® Customer Services as radius locations and other specifications may vary. All peripheries less than 100mm are deemed 100mm for surface finish purpose.
| Die number | O.D. (mm) | I.D (mm) | C (mm) | Mass (kg/m) | Perimeter (mm) | Ex Stock | Enquire |
|---|---|---|---|---|---|---|---|
| E09006 | 9.50 | 6.70 | 1.42 | 0.098 | 100.00 | ||
| E609720 | 9.53 | 6.27 | 1.63 | 0.110 | 100.00 | ||
| E609582 | 12.50 | 9.90 | 1.30 | 0.124 | 100.00 | ||
| E609536 | 12.70 | 9.90 | 1.40 | 0.135 | 100.00 | ||
| E03522 | 12.70 | 9.90 | 1.40 | 0.134 | 100.00 | ||
| E612230 | 13.40 | 8.40 | 2.50 | 0.232 | 100.00 | ||
| E09009 | 15.88 | 10.60 | 2.64 | 0.296 | 100.00 | ||
| E09001 | 15.88 | 13.00 | 1.42 | 0.174 | 100.00 | ||
| E14263 | 16.00 | 10.00 | 3.00 | 0.332 | 100.00 | ||
| E11760 | 16.00 | 12.80 | 1.60 | 0.195 | 100.00 | ||
| E02306 | 16.00 | 13.20 | 1.40 | 0.173 | 100.00 | ||
| E11834 | 19.00 | 15.00 | 2.00 | 0.288 | 100.00 | ||
| E01875 | 19.00 | 16.60 | 1.20 | 0.180 | 100.00 | ||
| E08999 | 19.10 | 16.20 | 1.42 | 0.212 | 100.00 | ||
| E609633 | 20.00 | 12.60 | 3.70 | 0.513 | 100.00 | ||
| EM8240 | 20.00 | 16.80 | 1.60 | 0.251 | 100.00 | ||
| E404569 | 20.60 | 10.20 | 5.20 | 0.682 | 100.00 | ||
| E12106 | 21.00 | 13.00 | 4.00 | 0.577 | 100.00 | ||
| E08998 | 22.20 | 19.40 | 1.42 | 0.251 | 100.00 | ||
| E612113 | 25.00 | 15.00 | 5.00 | 0.851 | 100.00 | ||
| EX5011 | 25.00 | 19.00 | 3.00 | 0.560 | 100.00 | ||
| E01999 | 25.00 | 21.00 | 2.00 | 0.390 | 100.00 | ||
| E609614 | 25.40 | 12.70 | 6.35 | 1.026 | 100.00 | ||
| E609593 | 25.40 | 22.60 | 1.40 | 0.283 | 100.00 | ||
| E06119 | 25.40 | 22.60 | 1.40 | 0.283 | 100.00 | ||
| E604530 | 28.60 | 22.60 | 3.00 | 0.654 | 100.00 | ||
| E09003 | 28.60 | 25.70 | 1.42 | 0.327 | 100.00 | ||
| E609623 | 30.20 | 16.60 | 6.80 | 1.350 | 100.00 | ||
| E04890 | 31.00 | 21.00 | 5.00 | 1.107 | 100.00 | ||
| E04390 | 31.80 | 29.00 | 1.42 | 0.359 | 100.00 | ||
| E404654 | 32.00 | 26.00 | 3.00 | 0.741 | 100.00 | ||
| EX5014 | 32.00 | 26.00 | 3.00 | 0.741 | 100.00 | ||
| E01866 | 33.00 | 24.50 | 4.25 | 1.040 | 104.00 | ||
| E11891 | 38.00 | 26.00 | 6.00 | 1.629 | 119.00 | ||
| E40676 | 38.00 | 32.00 | 3.00 | 0.888 | 119.00 | ||
| E404437 | 38.00 | 35.00 | 1.50 | 0.466 | 119.00 | ||
| E404561 | 38.10 | 28.50 | 4.80 | 1.361 | 120.00 | ||
| E603597 | 38.10 | 29.30 | 4.40 | 1.262 | 120.00 | ||
| E603601 | 38.10 | 32.10 | 3.00 | 0.896 | 120.00 | ||
| E04668 | 38.10 | 35.20 | 1.42 | 0.440 | 119.00 | ||
| EX5017 | 40.00 | 34.00 | 3.00 | 0.942 | 126.00 | ||
| E609259 | 40.00 | 36.00 | 2.00 | 0.648 | 126.00 | ||
| E13056 | 40.00 | 36.00 | 2.00 | 0.648 | 126.00 | ||
| E02003 | 40.00 | 36.80 | 1.60 | 0.521 | 126.00 | ||
| E04413 | 41.00 | 37.00 | 2.00 | 0.662 | 129.00 | ||
| E613569 | 42.50 | 34.10 | 4.20 | 1.370 | 134.00 | ||
| E09005 | 44.50 | 38.50 | 3.00 | 1.056 | 140.00 | ||
| E404066 | 44.50 | 41.10 | 1.70 | 0.619 | 140.00 | ||
| E603600 | 44.50 | 38.45 | 3.00 | 1.059 | 140.00 | ||
| E404453 | 45.00 | 39.00 | 3.00 | 1.073 | 141.00 | ||
| E09472 | 48.40 | 39.50 | 4.47 | 1.666 | 152.00 | ||
| E613989 | 48.40 | 43.20 | 2.60 | 1.014 | 152.00 | ||
| E06865 | 48.40 | 43.40 | 3.20 | 1.227 | 152.00 | ||
| E05749 | 50.00 | 38.80 | 6.00 | 2.270 | 159.00 | ||
| E609430 | 50.00 | 42.00 | 4.00 | 1.567 | 157.00 | ||
| E602926 | 50.00 | 44.00 | 3.00 | 1.200 | 157.00 | ||
| E11867 | 50.00 | 44.00 | 3.00 | 1.196 | 157.00 | ||
| E609265 | 50.00 | 46.00 | 2.00 | 0.817 | 157.00 | ||
| E02005 | 50.00 | 46.00 | 2.00 | 0.815 | 157.00 | ||
| E603742 | 50.80 | 38.80 | 6.00 | 2.288 | 160.00 | ||
| E01584 | 50.80 | 44.40 | 3.20 | 1.290 | 160.00 | ||
| E04356 | 50.80 | 48.00 | 1.42 | 0.586 | 160.00 | ||
| E01547 | 50.80 | 48.40 | 1.21 | 0.513 | 160.00 | ||
| E608826 | 51.30 | 46.80 | 2.25 | 0.940 | 161.00 | ||
| E13108 | 57.00 | 51.00 | 3.00 | 1.380 | 339.00 | ||
| E01609 | 58.00 | 54.00 | 2.00 | 0.950 | 182.00 | ||
| E13055 | 60.00 | 54.00 | 3.00 | 1.456 | 189.00 | ||
| E02007 | 61.20 | 57.20 | 2.00 | 1.000 | 192.00 | ||
| E611121 | 63.00 | 43.00 | 10.00 | 4.512 | 198.00 | ||
| E02009 | 63.50 | 42.90 | 10.30 | 4.690 | 199.00 | ||
| E14185 | 63.50 | 49.50 | 7.00 | 3.369 | 200.00 | ||
| E603741 | 63.50 | 51.50 | 6.00 | 2.926 | 200.00 | ||
| E04794 | 63.50 | 57.10 | 3.20 | 1.640 | 199.00 | ||
| E611636 | 65.00 | 53.00 | 6.00 | 3.000 | 204.00 | ||
| E04435 | 65.00 | 53.00 | 6.00 | 3.000 | 204.00 | ||
| E609502 | 65.00 | 55.00 | 5.00 | 2.545 | 204.00 | ||
| E609413 | 65.00 | 58.00 | 3.50 | 1.833 | 204.00 | ||
| E609266 | 75.00 | 63.00 | 6.00 | 3.525 | 236.00 | ||
| E14262 | 75.00 | 65.00 | 5.00 | 2.980 | 236.00 | ||
| E01546 | 75.00 | 69.00 | 3.00 | 1.830 | 236.00 | ||
| E03915 | 75.00 | 71.00 | 2.00 | 1.240 | 236.00 | ||
| EX2153 | 76.20 | 63.50 | 6.35 | 3.790 | 239.00 | ||
| E603740 | 76.20 | 64.20 | 6.00 | 3.570 | 239.00 | ||
| E05746 | 76.20 | 64.20 | 6.00 | 3.570 | 239.00 | ||
| EM8730 | 76.20 | 69.70 | 3.30 | 2.010 | 240.00 | ||
| E404207 | 76.20 | 69.70 | 3.32 | 2.018 | 239.00 | ||
| E09007 | 76.20 | 72.10 | 2.03 | 1.277 | 239.00 | ||
| E404206 | 76.20 | 73.70 | 1.25 | 0.798 | 239.00 | ||
| E613438 | 80.00 | 68.00 | 6.00 | 3.780 | 251.00 | ||
| E611526 | 80.00 | 72.00 | 4.00 | 2.588 | 477.00 | ||
| E03898 | 80.00 | 76.00 | 2.00 | 1.320 | 251.00 | ||
| EM8740 | 88.90 | 82.40 | 3.30 | 2.362 | 279.00 | ||
| E604062 | 88.90 | 83.10 | 2.90 | 2.123 | 279.00 | ||
| E611221 | 100.00 | 80.00 | 10.00 | 7.662 | 314.00 | ||
| E609310 | 100.00 | 88.00 | 6.00 | 4.802 | 315.00 | ||
| EM8830 | 100.00 | 88.00 | 6.00 | 4.802 | 315.00 | ||
| E611637 | 100.00 | 92.00 | 4.00 | 3.269 | 314.00 | ||
| E602823 | 100.00 | 94.00 | 3.00 | 2.490 | 314.00 | ||
| EX5026 | 100.00 | 94.00 | 3.00 | 2.490 | 314.00 | ||
| E611352 | 100.70 | 87.00 | 6.85 | 5.473 | 316.00 | ||
| E612108 | 119.00 | 103.00 | 8.00 | 7.560 | 373.00 | ||
| E611735 | 125.00 | 105.00 | 10.00 | 9.791 | 392.00 | ||
| E612404 | 125.00 | 113.00 | 6.00 | 6.079 | 393.00 | ||
| EM2017 | 125.00 | 119.00 | 3.00 | 3.110 | 393.00 | ||
| E603744 | 127.00 | 115.00 | 6.00 | 6.181 | 399.00 | ||
| E612209 | 127.00 | 120.50 | 3.25 | 3.424 | 399.00 | ||
| E612107 | 140.00 | 120.00 | 10.00 | 11.068 | 439.00 | ||
| E609017 | 150.00 | 143.00 | 3.50 | 4.349 | 471.00 | ||
| E03897 | 150.00 | 143.60 | 3.20 | 3.980 | 471.00 | ||
| E612677 | 160.00 | 140.00 | 10.00 | 12.771 | 503.00 | ||
| E612392 | 160.00 | 148.00 | 6.00 | 7.867 | 503.00 | ||
| E613004 | 200.00 | 188.00 | 6.00 | 9.910 | 628.00 |
Please note that diagrams, data and images are used for guidance purposes only. For correct details please request a specific die drawing from Altus® Customer Services as radius locations and other specifications may vary. All peripheries less than 100mm are deemed 100mm for surface finish purpose.
| Die number | A (mm) | B (mm) | R = Radii (mm) | Mass (kg/m) | Perimeter (mm) | Ex Stock | Enquire |
|---|---|---|---|---|---|---|---|
| E601504 | 25.00 | 10.00 | 0.00 | 0.619 | 100.00 | ||
| E00032 | 38.00 | 10.00 | 0.80 | 1.020 | 100.00 | ||
| EX4031 | 40.00 | 10.00 | 0.50 | 1.080 | 100.00 | ||
| EX4032 | 50.00 | 10.00 | 0.80 | 1.340 | 120.00 | ||
| E601551 | 50.00 | 10.00 | 0.00 | 1.355 | 120.00 | ||
| E00034 | 50.00 | 12.00 | 0.00 | 1.626 | 124.00 | ||
| E12566 | 60.00 | 10.00 | 0.80 | 1.619 | 139.00 | ||
| E12646 | 60.00 | 10.00 | 5.00 | 1.562 | 131.00 | ||
| E612176 | 60.00 | 12.00 | 0.00 | 1.951 | 143.00 | ||
| E11186 | 65.00 | 10.00 | 5.00 | 1.697 | 141.00 | ||
| E12565 | 75.00 | 10.00 | 0.80 | 2.024 | 169.00 | ||
| E609064 | 75.00 | 10.00 | 0.00 | 2.025 | 170.00 | ||
| E610839 | 75.00 | 12.00 | 0.00 | 2.439 | 173.00 | ||
| E609828 | 90.00 | 12.00 | 0.00 | 2.927 | 204.00 | ||
| EX4034 | 100.00 | 10.00 | 0.00 | 2.700 | 219.00 | ||
| E04345 | 100.00 | 12.00 | 1.50 | 3.240 | 221.00 | ||
| E609068 | 100.00 | 12.00 | 0.00 | 3.252 | 224.00 | ||
| E609267 | 100.00 | 16.00 | 0.00 | 4.336 | 232.00 | ||
| E609072 | 120.00 | 12.00 | 0.00 | 3.902 | 264.00 | ||
| E612397 | 125.00 | 10.00 | 0.00 | 3.387 | 269.00 | ||
| E11981 | 125.00 | 12.00 | 6.00 | 4.008 | 268.00 | ||
| E01594 | 127.00 | 12.00 | 0.80 | 4.110 | 277.00 | ||
| E04731 | 150.00 | 10.00 | 0.00 | 4.065 | 319.00 | ||
| E611661 | 150.00 | 10.00 | 0.00 | 4.065 | 319.00 | ||
| E00851 | 150.00 | 12.00 | 0.80 | 4.860 | 323.00 | ||
| E13118 | 160.00 | 10.00 | 0.80 | 4.319 | 339.00 | ||
| E611416 | 200.00 | 10.00 | 0.00 | 5.420 | 420.00 | ||
| E614623 | 200.00 | 12.00 | 0.00 | 6.504 | 424.00 | ||
| E609268 | 200.00 | 16.00 | 0.00 | 8.672 | 432.00 |
Please note that diagrams, data and images are used for guidance purposes only. For correct details please request a specific die drawing from Altus® Customer Services as radius locations and other specifications may vary. All peripheries less than 100mm are deemed 100mm for surface finish purpose.
| Die number | D (mm) | Mass (kg/m) | Perimeter (mm) | Ex Stock | Enquire |
|---|---|---|---|---|---|
| EA1810 | 4.75 | 0.048 | 100.00 | ||
| E01864 | 6.30 | 0.084 | 100.00 | ||
| E01964 | 8.00 | 0.136 | 100.00 | ||
| E01683 | 9.50 | 0.191 | 100.00 | ||
| E01961 | 12.70 | 0.342 | 100.00 | ||
| E14288 | 16.00 | 0.543 | 100.00 | ||
| E601393 | 19.05 | 0.772 | 100.00 | ||
| EX6003 | 20.00 | 0.851 | 100.00 | ||
| E613405 | 22.25 | 1.054 | 100.00 | ||
| E01970 | 25.00 | 1.330 | 100.00 | ||
| E601222 | 25.40 | 1.373 | 100.00 | ||
| E404648 | 27.20 | 1.575 | 100.00 | ||
| E609005 | 30.00 | 1.916 | 100.00 | ||
| E01973 | 31.80 | 2.130 | 100.00 | ||
| E01975 | 38.10 | 3.060 | 119.00 | ||
| E601238 | 38.10 | 3.090 | 119.70 | ||
| EM0445 | 44.45 | 4.190 | 140.00 | ||
| ER0508 | 50.80 | 5.600 | 160.00 | ||
| ER0635 | 63.50 | 8.580 | 200.00 | ||
| ER0698 | 69.80 | 10.410 | 219.00 | ||
| E612151 | 75.00 | 11.972 | 235.00 | ||
| ER0762 | 76.20 | 12.329 | 239.00 | ||
| ER0889 | 88.90 | 16.830 | 279.00 | ||
| ER1016 | 101.60 | 21.990 | 319.00 | ||
| ER1143 | 114.30 | 28.408 | 359.00 | ||
| ER1270 | 127.00 | 34.319 | 399.00 | ||
| ER1524 | 152.40 | 49.558 | 479.00 | ||
| ER1651 | 165.10 | 55.460 | 519.00 | ||
| ER2032 | 203.20 | 87.882 | 638.00 | ||
| ER2159 | 215.90 | 99.180 | 678.00 | ||
| ER2540 | 254.00 | 134.498 | 798.00 | ||
| ER3050 | 305.00 | 197.268 | 958.00 |
Please note that diagrams, data and images are used for guidance purposes only. For correct details please request a specific die drawing from Altus® Customer Services as radius locations and other specifications may vary. All peripheries less than 100mm are deemed 100mm for surface finish purpose.
| Die number | A (mm) | Mass (kg/m) | Perimeter (mm) | Ex Stock | Enquire |
|---|---|---|---|---|---|
| E601769 | 12.70 | 0.437 | 100.00 | ||
| E603420 | 19.05 | 0.983 | 100.00 | ||
| E04825 | 19.10 | 1.000 | 100.00 | ||
| E00246 | 25.40 | 1.800 | 101.00 | ||
| E00248 | 31.80 | 2.740 | 126.00 | ||
| E00250 | 38.10 | 3.960 | 153.00 | ||
| E609023 | 50.00 | 6.775 | 200.00 | ||
| ES0508 | 50.80 | 7.140 | 203.00 | ||
| ES0635 | 63.50 | 11.184 | 254.00 | ||
| ES0762 | 76.20 | 15.570 | 305.00 | ||
| ES1016 | 101.60 | 28.000 | 406.00 |
Please note that diagrams, data and images are used for guidance purposes only. For correct details please request a specific die drawing from Altus® Customer Services as radius locations and other specifications may vary. All peripheries less than 100mm are deemed 100mm for surface finish purpose.
| Die number | A (mm) | B (mm) | C (mm) | R = Radii (mm) | Mass (kg/m) | Perimeter (mm) | Ex Stock | Enquire |
|---|---|---|---|---|---|---|---|---|
| E08671 | 40.00 | 40.00 | 5.00 | 2.50 | 1.471 | 217.00 |
Please note that diagrams, data and images are used for guidance purposes only. For correct details please request a specific die drawing from Altus® Customer Services as radius locations and other specifications may vary. All peripheries less than 100mm are deemed 100mm for surface finish purpose.
| Die number | A (mm) | B (mm) | C (mm) | D (mm) | R = Radii (mm) | Mass (kg/m) | Perimeter (mm) | Ex Stock | Enquire |
|---|---|---|---|---|---|---|---|---|---|
| E00092 | 25.00 | 25.00 | 3.00 | 3.00 | 0.80 | 0.379 | 100.00 | ||
| E00098 | 38.00 | 38.00 | 4.50 | 4.50 | 4.50 | 0.888 | 145.00 | ||
| EK9144 | 40.00 | 40.00 | 3.00 | 3.00 | 0.40 | 0.623 | 160.00 | ||
| E609457 | 50.00 | 50.00 | 6.00 | 6.00 | 0.00 | 1.528 | 200.00 | ||
| E04633 | 50.00 | 50.00 | 6.00 | 6.00 | 3.50 | 1.530 | 193.00 | ||
| E13592 | 50.00 | 75.00 | 6.00 | 6.00 | 6.00 | 1.973 | 242.00 | ||
| E04343 | 50.00 | 100.00 | 5.00 | 5.00 | 0.80 | 1.950 | 297.00 | ||
| E13593 | 50.00 | 150.00 | 8.00 | 8.00 | 6.00 | 4.167 | 388.00 | ||
| E404387 | 55.00 | 28.00 | 24.00 | 2.40 | 2.40 | 0.689 | 201.00 | ||
| E04735 | 75.00 | 75.00 | 6.00 | 6.00 | 2.00 | 2.320 | 294.00 | ||
| E08368 | 75.00 | 106.00 | 6.00 | 6.00 | 1.00 | 2.830 | 359.00 |
Please note that diagrams, data and images are used for guidance purposes only. For correct details please request a specific die drawing from Altus® Customer Services as radius locations and other specifications may vary. All peripheries less than 100mm are deemed 100mm for surface finish purpose.
| Die number | A (mm) | B (mm) | C (mm) | D (mm) | Mass (kg/m) | Perimeter (mm) | Ex Stock | Enquire |
|---|---|---|---|---|---|---|---|---|
| E00085 | 55.00 | 28.00 | 24.00 | 2.40 | 0.705 | 203.00 | ||
| E00084 | 50.00 | 16.00 | 24.80 | 1.60 | 0.324 | 153.00 | ||
| E04391 | 139.70 | 34.93 | 63.50 | 2.79 | 1.423 | 374.00 |
Please note that diagrams, data and images are used for guidance purposes only. For correct details please request a specific die drawing from Altus® Customer Services as radius locations and other specifications may vary. All peripheries less than 100mm are deemed 100mm for surface finish purpose.
| Die number | A (mm) | B (mm) | C (mm) | D (mm) | Mass (kg/m) | Perimeter (mm) | Ex Stock | Enquire |
|---|---|---|---|---|---|---|---|---|
| E13135 | 20.00 | 35.00 | 50.00 | 3.00 | 0.838 | 210.00 | ||
| E00180 | 25.40 | 31.74 | 25.40 | 3.17 | 0.652 | 156.00 | ||
| E609231 | 30.00 | 25.00 | 2.50 | 3.00 | 0.602 | 154.00 | ||
| E603539 | 150.00 | 55.00 | 58.00 | 5.50 | 2.798 | 516.00 |
Send your enquiry
Simply fill out the form below and all of your selections from above will be included with your enquiry. Our team will then be in touch with pricing and availability as soon as possible.
Phone
You can call us with your request or any questions you have about our off cut stock.
Extrusion capabilities
Harnessing the power of our state-of-the-art dual press operation, we deliver unmatched precision and versatility for a wide range of production needs. Explore the table below to understand the features and performance metrics of each press. The lower table sets out some of our value-add manufacturing capabilities.
| Press facilities | Log diameter | Alloys used | Measurements | Temper | ||||
| Soft / Semi Structural | Hard / Semi Structural | Extruded finishes | Customer length range | Paint line length capacity | Section weight (kg/m) | |||
| OMAV 7" Press | 178mm | 6060 | - | Architectural, Structural | 2.0m - 6.0m | 2.5m - 6..5m | 0.1 - 2.5 | T5, T6 |
| TURLA 8" Press | 203mm | 6060 1200 |
6005 6106 6261 |
Architectural, Structural | 2.0m - 12m | 2.5m - 6.5m | 2.5 - 6.5 | T591, T4, T5, T6, F |
| Value-add Manufacturing Capabilities | |||
| Te Rapa Mill | Precise cut | Punch and slotting | Thermal zipping |
| Hounsell Road | Thermal Pour 'n' Debridge | - | - |
| Altus Distribution Centres | CNC Router cutting & machining | Plate, Sheet, Extrusion cutting | Outsource: CNC Waterjet cutting |
Our Facilities
Altus® Industrial Aluminium is home to a state-of-the-art two-press extrusion operation and advanced powder coating facility strategically located in Hamilton, and all designed to deliver precision and quality. Alongside our manufacturing footprint, our complementary network of Distribution Centres located in Auckland, Hamilton, and Christchurch ensure seamless supply of world-class aluminium products across northern, central, and southern New Zealand – and beyond. With cutting-edge technology and nationwide reach, Altus® Industrial Aluminium is your trusted partner for exceptional aluminium solutions on a global scale.
The Advantages of Extruded Aluminium
Explore the key benefits of extruded aluminium, including its exceptional strength, flexibility, and lightweight properties, making it an ideal choice for a variety of applications.
Strength
Extruded aluminium is renowned for its high strength-to-weight ratio, making it an ideal material for structural applications. Its durability ensures that it can withstand heavy loads and extreme conditions, providing long-lasting performance.
- Exceptional load-bearing capacity for demanding applications
- Resistant to deformation under stress, ensuring structural integrity
- Enhanced durability compared to other materials, reducing maintenance needs
Flexibility
Extruded aluminium offers remarkable flexibility in design and application. Its ability to be easily shaped and customised makes it suitable for a wide range of projects, allowing for creative and innovative solutions.
- Easily customised into various shapes and sizes to meet specific needs
- Versatile for use in different industries, from construction to automotive to medical
- Allows for complex designs without compromising structural integrity
Lightweight
Extruded aluminium is one of the lightest metals available, making it an excellent choice for applications where weight reduction is crucial. Its lightweight properties contribute to improved efficiency and ease of handling.
- Reduces overall weight without sacrificing strength or durability
- Enhances fuel efficiency in transport applications
- Simplifies installation and handling, lowering labour costs
Our Extruded Aluminium Solutions
Explore our extensive range of extruded aluminium products designed for various applications. Whether you need standard options or customised solutions, we have what you’re looking for.
